General Electric Oven/Range/Cooktop Spark Module 2+0 WB20K5037 / WB13K20 >> NLA <<

>>> DISCONTINUED BY MANUFACTURER <<<

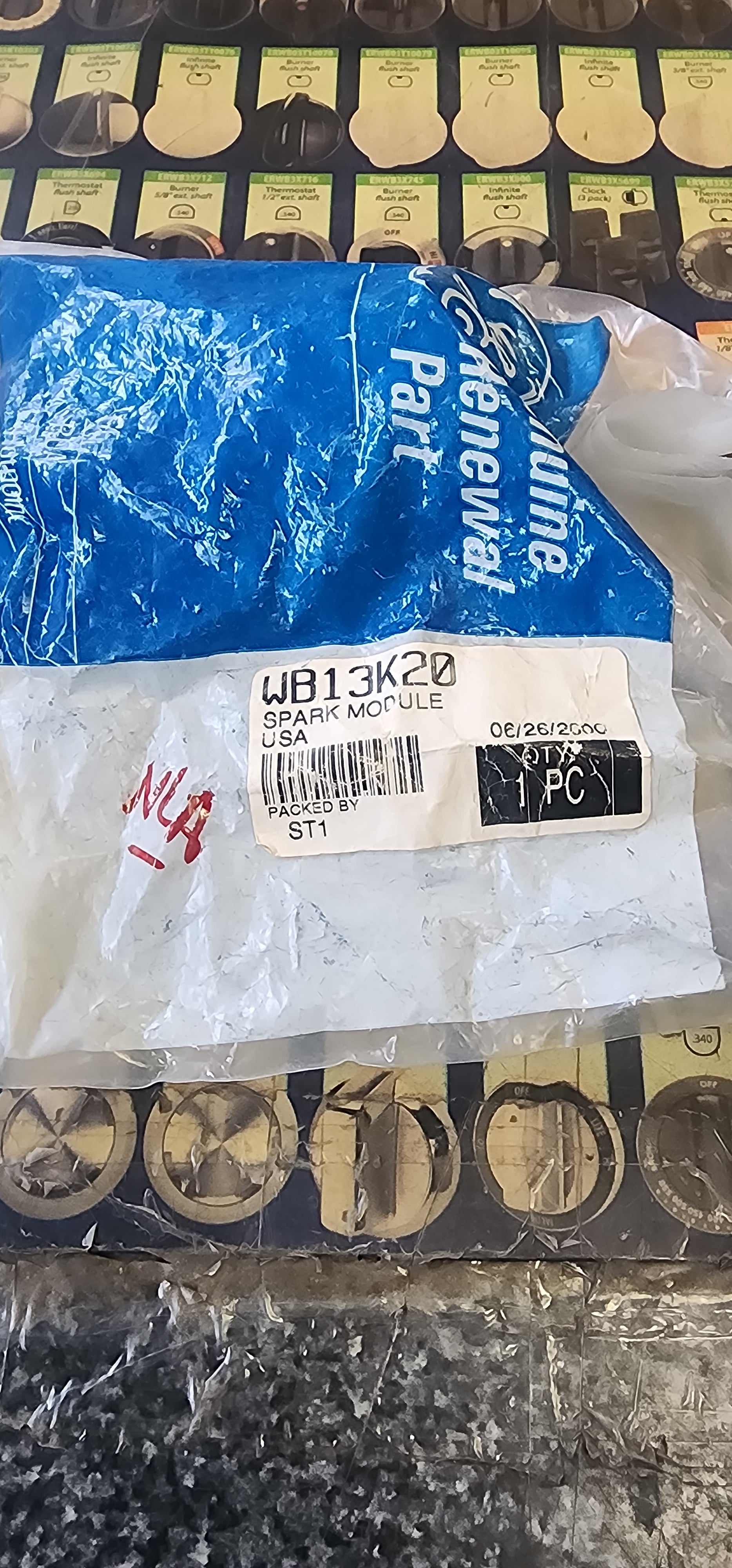

BRAND NEW OEM IN ORIG BAG # WB13K20

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.

Cross Reference Information

Part Number WB20K5037 replaces AP2023096, 251852, AH235158, EA235158, PS235158, WB13K0017, WB13K0020, WB13K0026, WB13K17, WB13K20, WB13K26.

Description

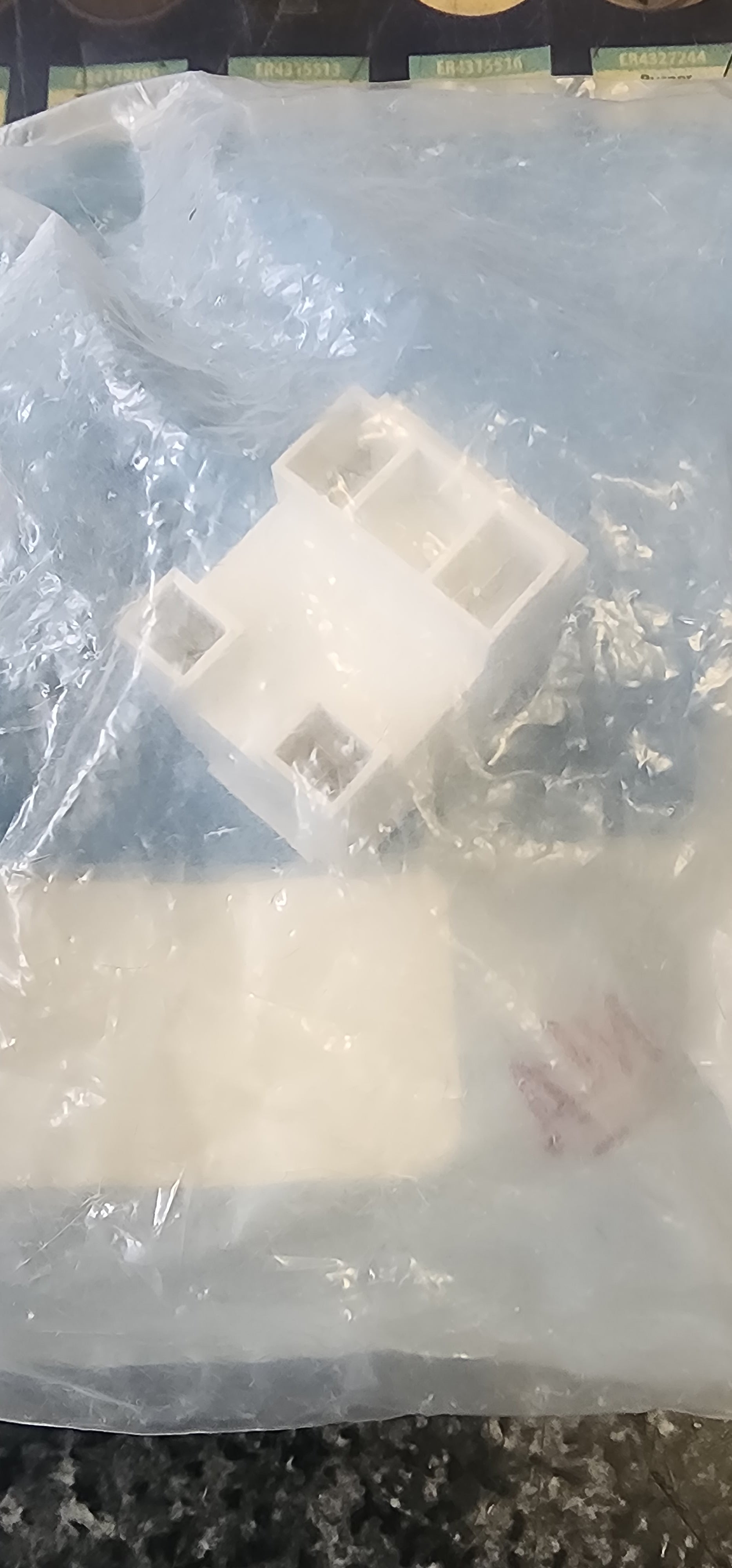

This spark module generates the high-voltage pulses that ignite the surface burners on your gas range or cooktop. Replacing a weak or failed module restores reliable clicking and ignition on the burners served by this 2-output (2+0) circuit. What it does:

• Generates high-voltage pulses to the surface-burner igniters when a control knob is turned to ignite
• Controls spark for two burners (2+0 configuration)
• Common failure symptoms: no clicking/spark on the affected burners, intermittent/weak spark, or needing a match to light

What's included:

• 1 spark module

Install notes:

• Disconnect electrical power and shut off the gas supply before servicing
• Access the module (typically beneath the cooktop or behind the control panel) and label/photograph wiring for reference
• Transfer wires one at a time; ensure high-voltage leads are fully seated and the module is properly grounded
• Mount securely, reassemble, restore utilities, and test ignition on both burners

Identification tip:

• "2+0" denotes a two-outlet surface-burner spark module; replace with the same configuration as the original

Diagnostic tip:

• A failed module typically affects all burners it serves; if only one burner won't spark, inspect that burner's igniter and switch first
