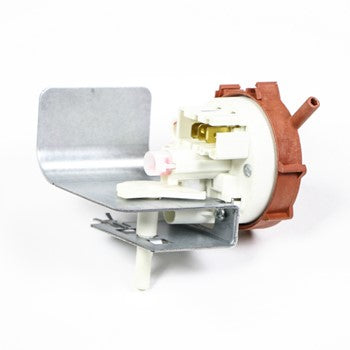

General Electric Washing Machine Water Level Pressure Switch WH12X10301 >> NLA <<

>>> DISCONTINUED BY MANUFACTURER <<<

BRAND NEW OEM IN ORIG BAG # WH12X10301

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.

Cross Reference Information

Part Number WH12X10301 replaces AP3885796, 1195385, AH1018030, EA1018030, PS1018030.

Description

This water level pressure switch monitors the tub's fill level and tells the washer when to stop filling and move to the next step. Replace it to restore accurate water levels and dependable cycle progress.

• Monitors air pressure from the tub to determine the selected water level
• Signals the control to open/close the inlet valves for proper fill
• Allows agitation and spin only after the correct level is reached
• Typical symptoms: overfilling or continuous filling, underfilling/low water level, cycle won't start or advance to wash/spin

What's included: 1 pressure switch Install notes:

• Unplug the washer and turn off the water supply before servicing
• Access the control console; note wire positions or take a photo and transfer connectors one at a time
• Move the pressure hose to the new switch; ensure the hose is clear, undamaged, and fully seated
• Secure the switch, reassemble, and run a fill test to confirm proper shutoff
