Maytag Washing Machine Washer Control Board WP22002989 / 22002989 >> NLA <<

>>> DISCONTINUED BY MANUFACTURER <<<

BRAND NEW OEM IN ORIG BOX # 22002989

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP22002989 replaces AP6006334, 22002989, 22002788, 22002989R, 775784, PS11739407.

Description

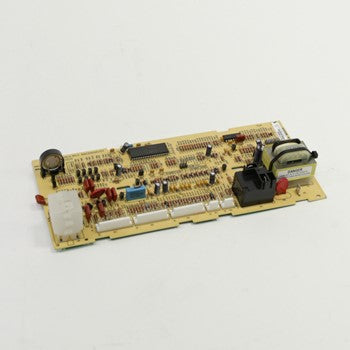

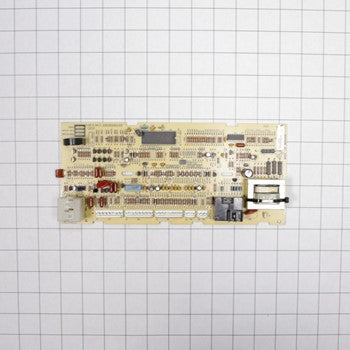

This is a Whirlpool washer control board. This is the main control board behind the user interface, not to be confused with the motor control board located within the body of the washer. This part controls the main functions of the washer and toggles between different cycles. Certain functions may become unavailable intermittently when the main control board loses function. The washer may also continue to spin, not following the regular timeline of the cycle. Start the repair by pulling the control knob from the front of the washer. Pull the washer out from the wall to access the rear panel. Remove the screws from the back panel and push back on the control panel while sliding a flat head under the right corner to release the mounting clip. Repeat this on the left side, and the central console should pull free. Release the clips for the wire harness and remove the air hose from the control board.
