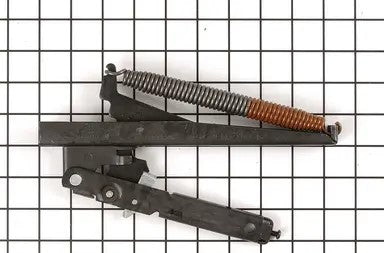

Viking Oven/Range Door Hinge Assy (brown) PC020009

.

BRAND NEW OEM ORIG # PC020009

DESCRIPTION: SINGLE HINGE--THIS HINGE WILL WORK ON THE LEFT OR RIGHT SIDE

DOOR HINGE REMOVAL

1-Remove door

2-Remove oven racks, rack supports, oven bottom

and inner side wall.

3-Remove two (2) screws securing the hinge cover to

the oven side wall.

4-Open the hinge and lock in the most open position.

5-Remove the lower and upper Phillips head screws

(located behind the oven gasket) securing the hinge

to the front frame.

6-Remove the hinge to the inside of the oven by

pulling through the hinge slot.

Cross Reference Information

Part Number PC020009 (AP5315870) replaces 811473.
