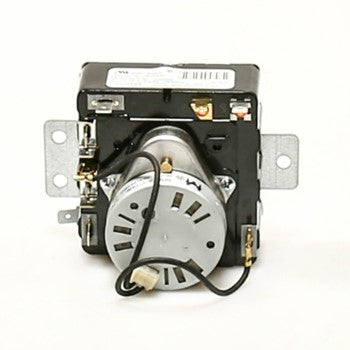

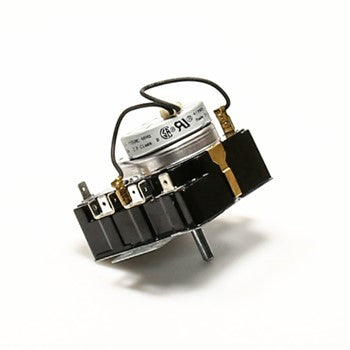

Whirlpool Dryer Timer Assy (4-Cycle) WP3976584 / 3976584 >> OEM <<

BRAND NEW OEM IN ORIG BOX # WP3976584

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.
Whirlpool also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WP3976584 replaces AP6009033, 3976584, 3406714, 548383, PS11742175.

Description

This 4-cycle timer controls your dryer's cycle selection and timing. Replacing it restores consistent cycle advancement and proper shutoff so loads finish on time without constant monitoring.

• Manages and advances the selected drying program through each stage
• Opens/closes internal contacts to route power to dryer circuits at the correct time
• Typical symptoms: timer won't advance, runs indefinitely, won't start in certain settings, or stops too soon/skips cycles
• Restores predictable cycle timing and automatic end-of-cycle shutoff

What's included: 1 timer Install notes:

• Disconnect power before servicing; for gas dryers, also shut off the gas supply
• Access the control console; label or photograph all wire positions
• Move wires to the new timer one at a time and secure with existing mounting hardware
• Reassemble and test multiple cycles to confirm proper advancement and shutoff
