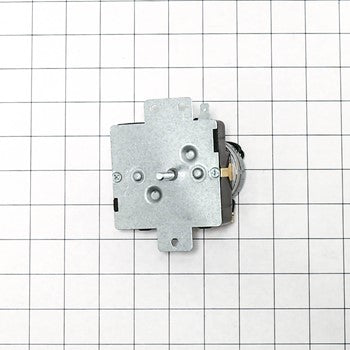

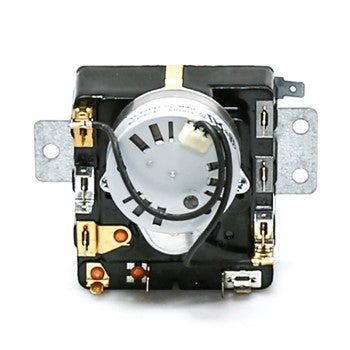

Whirlpool Dryer Timer Assy WP3976574 / 3976574 >> OEM <<

BRAND NEW OEM IN ORIG BOX # 3976574

Product Details

Genuine Whirlpool part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore, and others.

Cross Reference Information

Part Number WP3976574 replaces AP6009023, 3976574, 3398137, 3406704, 548373, PS11742165.

Description

This 3-cycle mechanical timer controls cycle sequencing and duration in select Whirlpool appliances, restoring proper timing and automated cycle changes. It's a direct-replacement control for units with a worn or non-advancing timer. What it does:

• Advances the appliance through its programmed cycles and times each cycle interval.
• Directly controls cycle-related functions so the unit starts, changes, and ends cycles as intended.
• Common symptom: appliance stays on one cycle, won't advance, or runs continuously.
• Common symptom: cycles do not complete or the appliance fails to switch between functions.

What's included: One 3-cycle mechanical timer. Install notes:

• Disconnect power (unplug or shut off breaker) before beginning any service.
• Take a photo or label wiring before removing the old timer to ensure correct reconnection.
• Handle the timer and connector pins carefully to avoid damage; use proper tools.
• After installation, restore power and run a test cycle to ensure proper operation.
